Product Details
＋

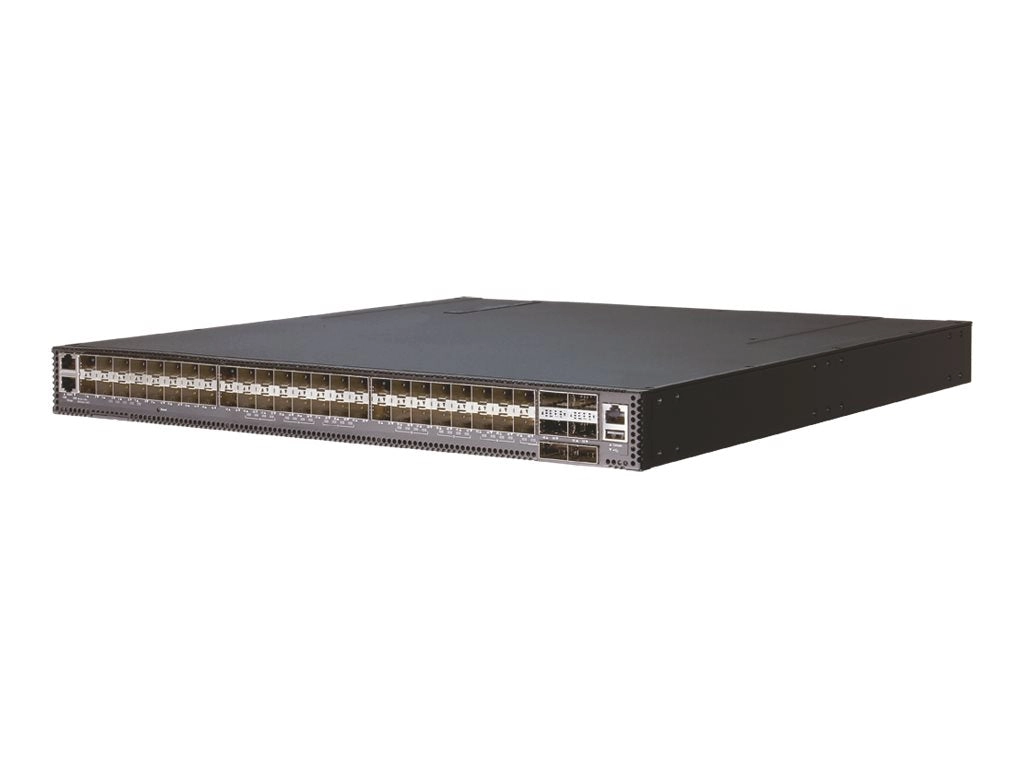

Edge-Core AS5835-54X - Switch - L3 - managed - 48 x 1 Gigabit / 10 Gigabit SFP 6 x 100 Gigabit QSFP - front to back airflow - rack-mountable - TAA Compliant
The Edgecore AS5835-54X switch meets the high-performance, availability, and network-scaling requirements of enterprise and cloud data centers. The AS5835-54X provides full line-rate switching at Layer 2 or Layer 3 across 48 x 10GbE ports and 6 x 100GbE uplinks. The switch can be deployed either as a Top-of-Rack switch, or as part of a 40GbE or 100GbE distributed spine, forming a non-blocking folded-Clos data center fabric. The switch is rack mountable in a standard 19-inch rack.
The AS5835-54X hardware provides the high availability features required for data center operation, including: Redundant, hot-swappable AC or -48 VDC PSUs, 4 1 redundant fan modules, and port-to-power or power-to-port airflow options. The AS5835-54X is an ideal Top-of-Rack switch for virtualized data centers with support for VXLAN and NVGRE tunneling functions in hardware.
The Edgecore AS5835-54X switch meets the high-performance, availability, and network-scaling requirements of enterprise and cloud data centers. The AS5835-54X provides full line-rate switching at Layer 2 or Layer 3 across 48 x 10GbE ports and 6 x 100GbE uplinks. The switch can be deployed either as a Top-of-Rack switch, or as part of a 40GbE or 100GbE distributed spine, forming a non-blocking folded-Clos data center fabric. The switch is rack mountable in a standard 19-inch rack.
The AS5835-54X hardware provides the high availability features required for data center operation, including: Redundant, hot-swappable AC or -48 VDC PSUs, 4 1 redundant fan modules, and port-to-power or power-to-port airflow options. The AS5835-54X is an ideal Top-of-Rack switch for virtualized data centers with support for VXLAN and NVGRE tunneling functions in hardware.
- Cost-effective, bare-metal switch infrastructure for data center fabric
- 48 x SFP switch ports, supporting 10GbE (DAC, 10GBASE-SR/LR) or 1GbE (1000BASE-T/SX/LX)
- 6 x 100 QSFP28 switch ports, each supporting 100GbE (DAC, 100GBASE SR4/LR4) or 4 x 25GbE (DAC or fiber breakout cable)
- VXLAN and NVGRE tunneling support in hardware for network virtualization
- Rack mountable in standard 19" racks
- Supports hot/cold aisles with port-to-power and power-to-port airflow SKUs
- All ports on front; PSUs, fan modules on rear
- Hot-swappable, load sharing, redundant AC or -48 VDC PSUs
- Hot swappable 4 1 redundant fan modules
- Management: Ethernet and console RJ-45 ports; USB storage port
- Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings
- Compatible with IP Infusion OcNOS
- Compatible with Pica8 Inc. PicOS
- Compatible with Open Network Linux (ONL), the open-source, OCP reference NOS
- Compatible with SONiC open source network software
